View Network Objects and Groups
After you add Network Objects and Groups in Cisco Secure Access, you can view the details about the resources.
Table of Contents
Prerequisites
- A minimum user role of Read Only. For more information, see Manage Accounts.
Procedure
View the Network Objects and Groups that you added to the organization in Secure Access.
-

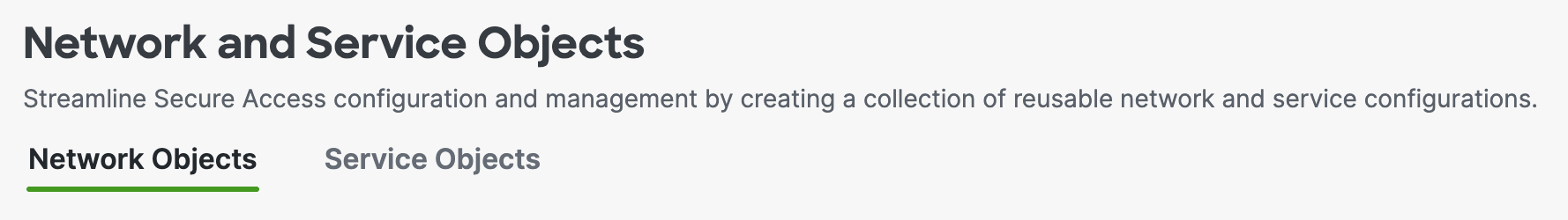

Navigate to Resources > Network and Service Objects.
-
On Network Objects, navigate to Network objects and groups.
-

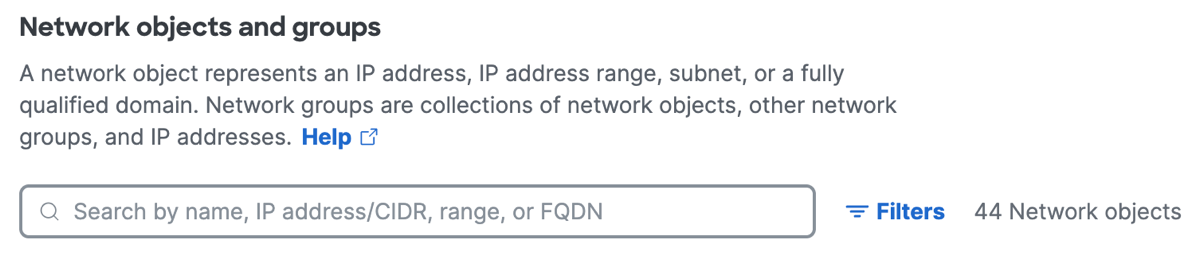

(Optional) Search for the Network Objects in the organization. In the search bar, enter a sequence of characters to query for the name of the Network Objects.
-

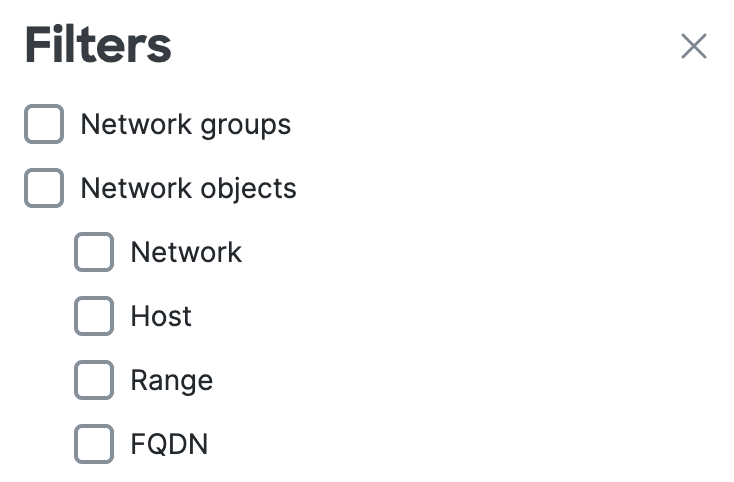

(Optional) Filter for the Network Objects in the organization. Click Filters, choose the Network Objects, Network Object Groups, and types of the Network Objects.
-

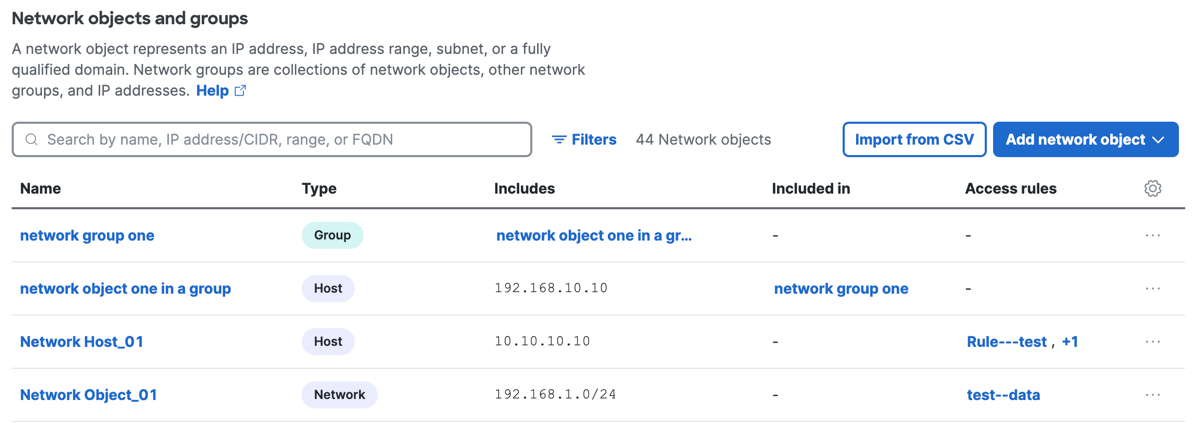

In the table, Secure Access displays the properties for the Network Objects and Groups in the organization.
-
Name—The name of the Network Object or Network Object Group.
-
Type—The type of the Network Object or Network Object Group.
- For a Network Object, the type is: FQDN, Host, Network, or Range.
- For a Network Object Group, the type is Group.
-
Includes—The values of the Network Object or references to the objects that are included in the Network Object Group.
- For a Network Object, the value is: the fully-qualified domain name (FQDN), IP addresses or wildcard mask for the Network Object.
- For a Network Object Group, the value is the list of Network Objects or Network Object Groups, which the group includes.
-
Included in—The list of Network Object Groups that include the Network Object or Network Object Group.
- For a Network Object, the value is the list of Network Object Groups that include the resource.
- For a Network Object Group, the value is the list of Network Objects or Network Object Groups, which are included in the group.
-
Access rules—The list of rules that have the Network Object or Network Object Group selected on the rules.
-
-
(Optional) In the table, navigate to the Name column.
a. Click on the name of a Network Object or Network Object Group in the table to view the details about the resource.b. View the details about the resource.
